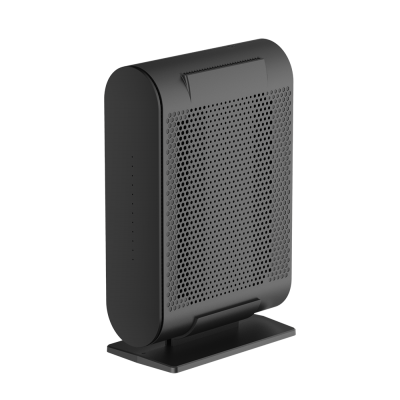

BR-6889AX

AX3600 4T4R 10GE Router

  • 11AX 4T4R Concurrent Dual Band
  • Up to 3600Mbps WiFi 6 performance
  • 4MB NOR Flash + 128MB Flash + 512MB DRAM
  • Qualcomm IPQ8072A+QCN5024+QCN5054
  • CSR8811 BLE4.2
  • 2 x 10G Ethernet ports
  • 3 x Gigabit Ethernet Ports
  • 37 OFDMA users
  • 1 x USB 3.0 port
WiFi 6

4T4R AX3600 Router

The EW-7889CAX is an ultra high performance router with the latest 11ax WiFi 6 radios for enterprise users.  Featuring Qualcomm’s Quad-Core A53 CPU at 2GHz, the 11ax AP can deliver 2402Mbps at 5GHz and 1148Mbps at 2.4GHz.

2 x 10Gigabit Ethernet Ports

The router is equipped with two 10GE Ethernet ports.  It allows the router to connect with a NAS in one end and a high speed WAN connection on the other. 3 extra Gigabit ports are provided for connection with other PC/Server.

Bluetooth support

The EW-7889 has a BLE radio built-in for direct configuration through Bluetooth.
Product   BR-6889AX
Wireless Technology
IEEE 802.11b/g/n/ax 2.4GHz 1024QAM with 1200Mbpps
IEEE 802.11a/n/ac/ax 5GHz 1024QAM with 2400Mbps
Support 4x4 MU-MIMO/OFDMA at 2.4GHz and 5GHz
BLE support (option)
4x Internal Dual-band Antenna
1x BLE antenna (option)
CPU Platform
Qualcomm Hawkeye IPQ8072A, Quad 64bit A53 @ 2.2GHz
Dual Core Multi-Threaded Network Accelerator
In-line security Engine
Scalable high-speed interfaces (Serdes) for 1GE/2.5GE/10GE/USB3.0/PCI-Ev2
Memory
SPI NOR Flash : 4MB
NAND Flash : 128MB
DDR3 SDRAM : 2x 256MB
Interface Ports
3 x 10/100/1,000Mbps BASE-T Ethernet (RJ45)  (with Link/Act, Speed LED)
2 x 100/1,000/2,500/5,000/10,000Mbps BASE-T Ethernet (RJ45) (with Link/Act, Speed LED)
1 x USB 3.0 type A connector
1 x M.2 connector (PCI-E 3.0 & USB3.0 support)
Miscellaneous
1 x Reset Button (Reset / Reset to Factory Default)
1 x Power on/off button
LED
Power, Internet, LAN, 2.4G, 5G, status (TBD)
PCB dimension
180 x 180 x 1.6mm/6L
Enclosure dimension
192 (W) x 200 (H) x 172 (D)mm without stand
Operating Temperature
0 ~ 40 degree C
