Home WiFi

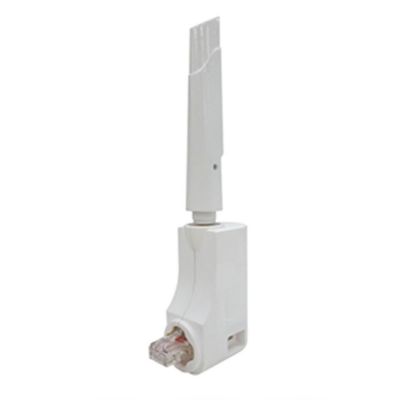

EW-7288AC

11AC 5GHz Band Extender

  • Comply with IEEE802.11ac draft & IEEE 802.11a/an standards.
  • Supports single band 5GHz
  • Very high transfer data rate - up to 450Mbps (5GHz)
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security.
  • Supports WPS (WiFi Protected Setup) hardware button for easy connection.
  • Portable type and external dipole antenna design.
  • Low power consumption use USB2.0 line power.
  • Support mode: Access Point / Client mode
  • RJ-45 male connector, easy upgrade your traditional router become to 11ac dualband router

11ac Wireless Band Extender
5G 11ac, up to 450Mbps
Product   EW-7288AC
Main Chipset
Realtek RTL8881AM
Flash + SDRAM
8MB Flash + 64MB DDRAM II
Frequency Band
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11n (40MHz): MCS0-7, up to 144Mbps
11ac (80MHz): VHTMCS0-9, up to 433Mbps
Output Power
5GHz: 11a(54M): 13±1.5dBm
11n(20MHz, MCS7): 13±1.5dBm
11n(40MHz, MCS7): 13±1.5dBm
11ac(80MHz, VHTMCS9): 12±1.5dBm
Receive Sensitivity
5GHz: 11a(54M): -71±2dBm
11n(20MHz, MCS7): -69±2dBm
11n(40MHz, MCS7): -65±2dBm
11ac(80MHz, VHTMCS9): -52±2dBm
Antenna
1 x External dipole antennas (1T1R)
LED
System LED x 1
Dimension
60 (L) x 50 (W) x 23 (D) mm (without ANT) (ANT 83mm (L))
Power Module
5V, 1.5A Power Module Inside
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
FCC
