EW-7822GTN V3.0A

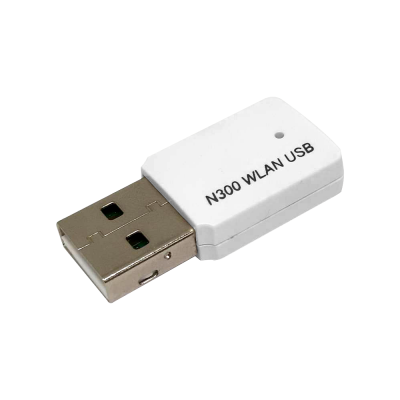

N300 Wireless LAN USB Adapter

  • Comply with IEEE 802.11b/g/n standards.
  • High transfer data rate  – up to 300Mbps.
  • Supports WMM wireless QoS feature.
  • Supports 64/128-bit WEP, WPA, WPA2, WPA3(2019/Q2).
  • Supports IEEE 802.1x functions for high level of security.
  • Support the most popular operating system: Windows 10, Linux and MAC OS.
  • Supports WPS (WiFi Protected Setup)  hardware button for easy connection.
  • Supports USB 2.0/1.1 interface.
  • Supports 802.11e WMM wireless QoS feature.
  • Supports MIMO power saving mechanism.
  • Portable and tiny size design.
Inquiry

Tiny-Size, up to 300Mbps
IEEE 802.11b/g/n, 2T2R
Product 300N Wireless LAN USB Adapter
Main Chipset
Realtek RTL8192FU
Standard
IEEE 802.11b/g/n
Bus Type
USB 2.0 Type A
Frequency Band
2.4000~2.4835GHz (Industrial Scientific Medical Band)
Data Rate
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
Output Power
11b@11Mbps: 16±1.5dBm
11g@54Mbps: 15±1.5dBm
11n(20MHz)@MCS7: 14±1.5dBm
11n(40MHz)@MCS7: 14±1.5dBm
Receive Sensitivity
11b@11Mbps: -87±2dBm
11g@54Mbps: -73±2dBm
11n(20MHz)@MCS7: -71±2dBm
11n(40MHz)@MCS7: -67±2dBm
Security
WEP 64/128, WPA, WPA2, IEEE 802.1x
Antenna
Internal PiFa Antenna x 2 (2T2R)
Drivers
Windows 10, Linux and MAC OS
LED
Link/Activity
Dimension
8(H) x 16(W) x 35.5(D) mm
Temperature
Operating: 32~104°F (0~40°C), Storage: -4~140°F (-10~60°C)
Humidity
Operating: 10~90% (Non-Condensing)
Storage: Max. 95% (Non-Condensing)
Certification
TBD
