AIOT

IC-3231GOP

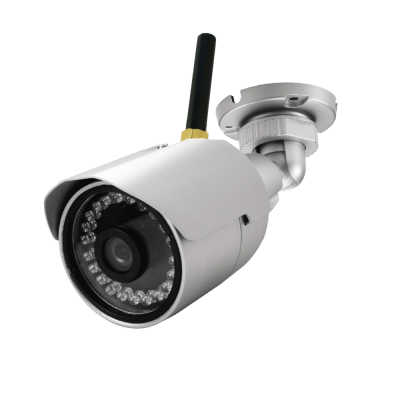

2MP Wi-Fi Bullet Camera, Low Lux & Wide Angle

  • 30 fps @ 1920x1080
  • Multi-stream from H.264 / MJPEG
  • Wide Angle Lens 3.055mm, H:117°, V:60°, D:150°
  • Built-in IR Illuminators, Effective up to 20 Meters
  • Built-in Micro-SD card slot, Max. 64G+ (16G Embedded)
  • Exposure Mode: AUTO (Day and Night)
  • Weather Proof IP66
  • Support 2D/3D-NR, Digital WDR
  • Support Bluetooth 4.2

An 2MP compact bullet network camera with an IP66 rated and cable protective housing. It is designed for quick and flexible wall or ceiling mount installation. It has wider field of view and is capable of capture color image under low light.  New model provides a strong depth of field which means it can get image with more details. User can install less amount of cameras when set up surveillance system. The built-in IR LEDs support day/night function or even dark environment. The effective IR distance is up to 20 meters. It is suitable for multiple application. EX: Parking Lot, Arcade area…etc
System
CPU
Mstar MSC528D
Flash
32MB
RAM
128MB (MSC528D Embedded)
Wi-Fi
2.4G 1T1R  (External Antenna)
Bluetooth
BLE 4.2 ( External Antenna)
Image Sensor
Part Number
Sony IMX323 (1/2.9“)
Max. Resolution
1920(H) x 1080(V)
Effective Pixels
1985(H) x 1105(V)
Lens
Focal Length
f=3.055mm
Iris (F No.)
F 2.0
Angle of View
H: 117° ; V: 69° ; D: 150°
Day & Night
Mechanical IRCF(ICR)
Yes (Built-in Removable IR-cut filter)
IR Distance (Max.)
20M, 850nm
Min. Illuminators
Color Mode
0.1 Lux
B/W Mode
0 Lux (IR On)
Video Codec
H.264(Main)
30fps@1920x1080 (Max.)
H.264(Sub)
30fps@1280 x720 (Max.)
MJPEG
30fps@1280x720  (Max.)
Codec Quality
H.264: 5 Levels (Max. 1080P)
Bit Rate  (Max. 6Mbps @ 1080P)
Interface
Local Storage
MicroSD Slot x 1
Supported SD/SDHC, Max. 64GB+
(16G embedded)
Audio in/out
Line In / -
LED Indicators
States LED
Reset Button
Push Button
Power Supply
DC Power
DC12V Jack (1.5A Ø2.5mm)
Power Consumption
DC12V, Max. 4.6W
Environment
Operating Temp
-30°C~55°C (-22°F~131°F)
Humidity
20%~90% RH
Storage Temp
-40°C~60°C (-40°F~140°F)
Mechanical Spec
Dimensions, Weight
Ø 73 x 189.5  (L), Net 610g
Weatherproof
IP66
Special Features
Motion Detection
3 Scalable Windows
Digital Noise Reduction
2D / 3D
Shutter Time
Auto Mode
1/15~1/25000sec (Image Sensor)
Mirror
Vertical, Horizontal
Digital Zoom
4~6 x Digital Zoom
Multiple Streaming
Max. 3 Streams
Event and Alarm Operation
Alarm Trigger
Video Motion Detection
Alarm Rec. Buffer
5 sec Pre-alarm / 5 sec post-alarm
Up to 3MB
Certificate & Warranty

CE class B , FCC class B; Warranty 12 Months
