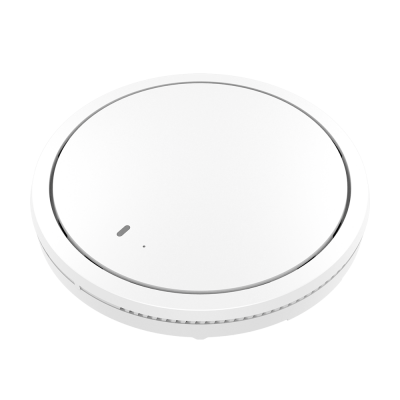

EW-7479CAX
AX1800 2T2R Ceiling Mount PoE AP
- 11AX 2T2R Concurrent Dual Band
- Up to 1800Mbps WiFi 6 performance
- 128MB Flash + 512MB DRAM
- Qualcomm IPQ8070A+QCN5024+QCN5054
- 37 OFDMA users
- 1 Gigabit PoE Port
- Built-in Radius Server
- Ceiling Mount Design
WiFi 6
AX1800 Ceiling Mount PoE AP
The EW-7479CAX is a high performance ceiling mount AP with the latest 11ax WiFi 6 radios for enterprise users. Featuring Qualcomm’s Quad-Core A53 CPU, the 11ax AP can deliver 1202Mbps at 5GHz and 574Mbps at 2.4GHz. With one Gigabit PoE port and one Gigabit data port, it provides flexibility for installersQCA Acron Solution
With the latest wireless 802.11ax technology, it shows improvements in the speed, reliability and quality of wireless communications. Supporting 2x2 MU-MIMO OFDMA, the Qualcomm Acorn architecture provide 37 simultaneous OFDMA users. It is suitable for high density deployment.Built-in Radius Server
With built-in Radius Server, it is possible build an user access control system without the need for dedicated hotspot gateway.HARDWARE
- CPU
- Qualcomm IPQ8070A. Quadcore Arm A53 @ 1GHz
- RF
- Qualcomm QCN5024+QCM5054
- Memory
- 128MB Flash + 512MB DRAM
- FEM&PA
- 5G: SKY85750-11
2.4G: SKY85334-11
- Interface
- 1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in)
- Button
- Reset button
- LED Indicator
- Power LED, Diag LED
- Antenna
- Type: 2 x Built-In PIFA (2 dual-band antenna)
Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max.
- Power
- DC: 12V / 1A
802.3af (PoE Injector Optional)
- Power Consumption
- 12W (Full Loading)
- Power Saving
- 802.3az
- Mounting
- Ceiling
- Housing
- UL94-5VB Flammability Rating
- Dimension
- 176.29 (D) x 32.75 (H) mm
- Weight
- 372g
WIRELESS
- Standard
- 802.11 a/b/g/n/ac/ax Concurrent Dual-Band
- Frequency Band
- Radio Ⅰ: 802.11b/g/n/ax 2.412~2.484(GHz)
Radio Ⅱ: 802.11a/n/ac/ax 5.15~5.25(GHz), 5.25~5.35(GHz),
5.470~5.725(GHz)
(The supported frequency band is restricted by local regulations.)
- Maximum Data Speed
- 2.4GHz: 574Mbps, 5GHz: 1201Mbps
- Operation Channels
- 2.4GHz :
US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
5GHz : Country dependent for the following ranges:
US/Canada:
Band 1: 36, 40, 44, 48; 5.180~5.240(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe:
Band 1: 36, 40, 44, 48; 5.180~5.240(GHz)
- Maximum Transmit Power
- 802.11b
17dBm@1Mbps, 17dBm@11Mbps
802.11g
17dBm@6Mbps, 15dBm@54Mbps
802.11n (2.4G)
17dBm@MCS0(HT20), 15dBm@MCS7(HT20), 12dBm@MCS9(HT40)
802.11ax (2.4G)
9dBm@MCS11 (HT40), 15dBm@MCS4/12, 15dBm@MCS5/13
14dBm@MCS6/14, 14dBm@MCS7/15
802.11a
17dBm@6Mbps, 16dBm@54Mbps
802.11n(5G)
17dBm@MCS0 (HT20), 15dBm@MCS7 (HT20)
802.11ac
17dBm@MCS0 (VHT80), 15dBm@MCS7 (VHT80), 14dBm@MCS9 (VHT80)
802.11ax (5G)
10dBm@MCS11 (HT80)
(CE: 20dBm or lower, FCC: 23dBm or lower)
- Receiver Sensitivity
- 802.11b : ≤-88dBm@1Mbps , ≤-86dBm@11Mbps
802.11g : ≤-88dBm@6Mbps , ≤-71dBm@54Mbps
802.11gn (2.4G) : ≤-88dBm@MCS0 , ≤-68dBm@MCS7m , ≤-60dBm@MCS9
802.11ax (2.4G) : ≤-53dBm@MCS11
802.11a: ≤-87dBm@6Mbp , ≤-68dBm@54Mbps
802.11n(5G) : ≤-87dBm@MCS0 , ≤-68dBm@MCS7
802.11ac : ≤ -56dBm@MCS9
802.11a (5G) : ≤ -50dBm@MCS11
- Concurrent Clients
- Up to 128 Per Radio
- No. of SSIDs
- 16 (2.4GHz) + 16 (5GHz)
- 802.11 r/k Fast Roaming
- Yes
- Band Steering
- Yes
- AirTime Fariness
- Yes
- Beamforming
- Yes
SOFTWARE
- Wireless Mode
- AP / WDS AP / WDS Bridge
- 802.1q VLAN
- Y (VID = 1-4095)
- Spanning Tree
- RSTP
- QoS
- WMM (802.11e)
Max associated station number
- Pass-Through
- IPv6 and VPN (PPTP, L2TP/IPsec)
- DSCP (802.1p)
- Yes
- Multicast Rate up to 54Mbps
- Yes
SECURITY
- Encryption
- WEP / WPA2-AES / WPA3
- Wireless L2 Isolation
- Yes
- Station Isolation
- Yes
- IEEE 802.1x Authenticator
- Yes
- EAP Authentication
- PEAP
- Hidden SSID
- Yes
- MAC Address Filter
- Yes
- Wireless STA
- Yes
- Rogue AP Detection (w/ NMS)
- Yes
MANAGEMENT
- Deployment
- Standalone (AP mode)
Master AP mode: Can manage 16 Edimax CAX1800 APs with NMS
Managed AP mode: Be managed by Edimax CAX1800 Master AP with NMS
- Configuration
- HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
- RADIUS Server
- Built-In
- Auto-Channel
- Yes
- Private MIB
- Yes
OTHERS
- Certification
- CE, FCC
- Environmental Condition
- Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less
